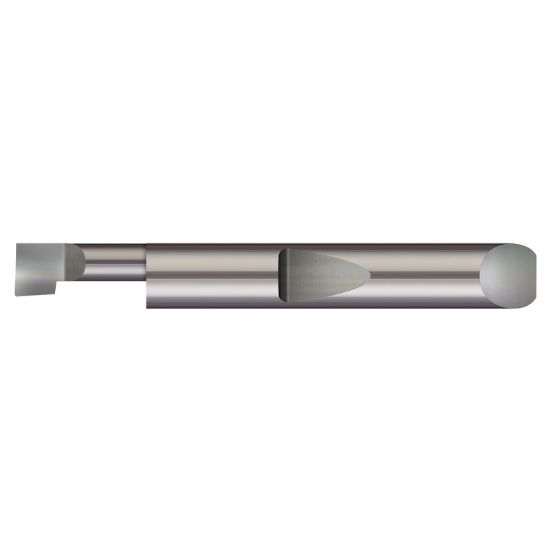

MICRO 100 QBB-110300 Solid Tool Face Grooving, Boring Swiss 0.187 Shank 0.122 Min Bore 1.500 OAL

ANSI: QBB-110300

ISO: QBB-110300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQBB-110300
Delivery date: 3-5 days
$33.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Application Int.Solid Face Grooving, Swiss
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Neck Length 0.3000 7.62MM
Tool Material Carbide
Gauge Length 0.5900
Centerline Off Set 0.0160
Tool Over Hang 0.0280
Corner Radius 0.0030 0.08MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Min Bore 0.1220
Face Groove Max Dia 0.1220
Overall Len 1.5000 38.10MM
Face Groove Min Dia 0.1100
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
