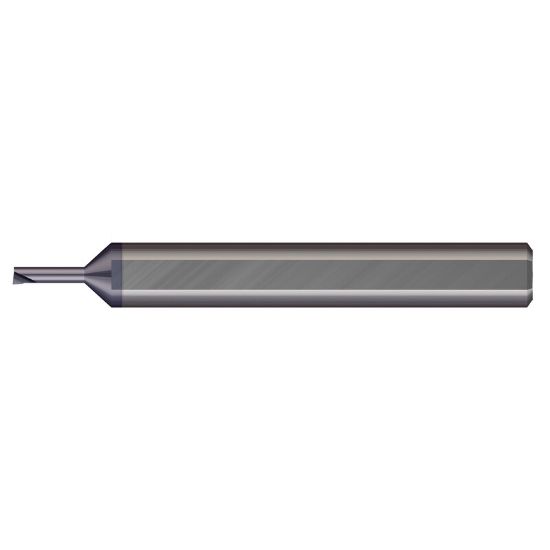

MICRO 100 MBBM-008040X Solid Tool Boring, Facing Swiss 0.118 Shank 0.0283 Min Bore 1.496 OAL

ANSI: MBBM-008040X

ISO: MBBM-008040X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICMBBM-008040X
Delivery date: 3-5 days
$35.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Application Swiss, Int.Solid Facing & Turning
Made In USA Yes
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.1181 3.00MM
Centerline Off Set 0.0157
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 1.4961 38.00MM
Tool Material Carbide
Tool Over Hang 0.1575
Min Bore 0.0283
Machine Side Connection Size 0.1181 3.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
