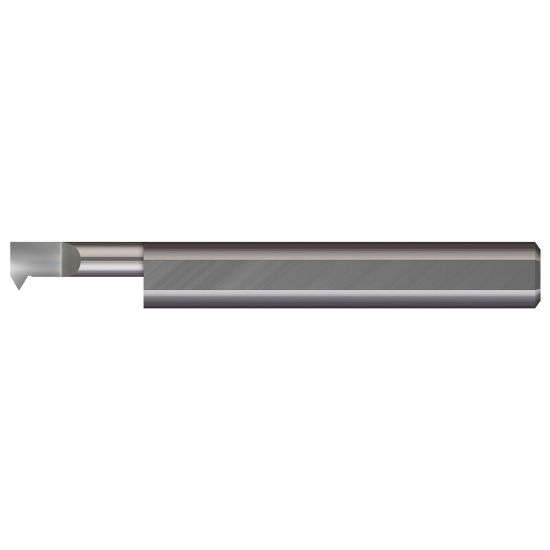

MICRO 100 IT-4901500 Solid Tool Threading Swiss 0.500 Shank 0.49 Min Bore 3.000 OAL

ANSI: IT-4901500

ISO: IT-4901500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICIT-4901500
Delivery date: 3-5 days
$86.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Full Or Partial Profile Partial Profile
Insert Application Semi Finishing, Finishing
Made In USA Yes
Application Swiss, Int.Solid Threading
Shipping State Massachusetts
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Thread Type UN
Min Bore 0.4900
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 3.0000 76.20MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Neck Length 1.5000 38.10MM
Tool Over Hang 0.1200
Tool Material Carbide
Centerline Off Set 0.2400
Corner Radius 0.0020 0.05MM
Machine Side Connection Size 0.5000 12.70MM
Thread Pitch 24.00TPI - 6.00TPI 1.06MM - 4.23MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
