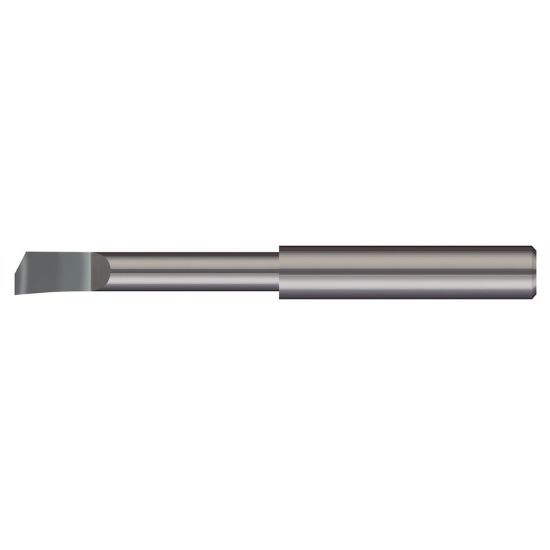

MICRO 100 HBB-4802500 Solid Tool Back Boring Swiss 0.500 Shank 0.46 Min Bore 4.000 OAL

ANSI: HBB-4802500

ISO: HBB-4802500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICHBB-4802500
Delivery date: 3-5 days
$89.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Massachusetts
Package Size 1
Insert Application Finishing, Semi Finishing
Made In USA Yes
Application Int.Solid Back Turning, Swiss
Dimensional Specifications
Neck Length 2.5000 63.50MM
Neck Dia 0.4400
Tool Material Carbide
Centerline Off Set 0.2400
Min Bore 0.4600
Machine Side Connection Size 0.5000 12.70MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 4.0000 101.60MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
