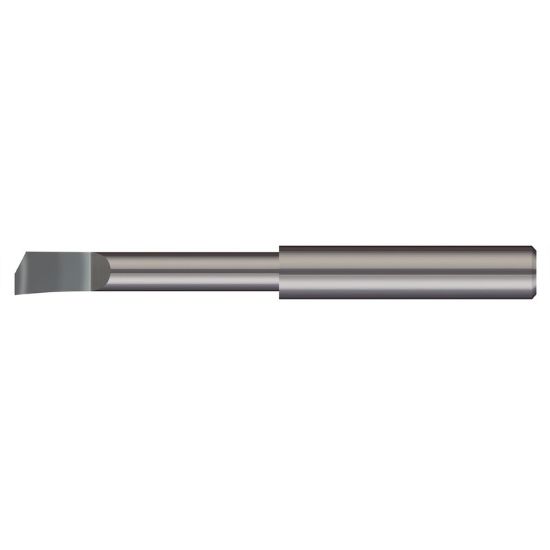

MICRO 100 HBB-1801500 Solid Tool Back Boring Swiss 0.187 Shank 0.17 Min Bore 2.000 OAL

ANSI: HBB-1801500

ISO: HBB-1801500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICHBB-1801500
Delivery date: 3-5 days
$28.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Int.Solid Back Turning
Made In USA Yes
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Centerline Off Set 0.0900
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Min Bore 0.1700
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Neck Length 1.5000 38.10MM
Neck Dia 0.1600
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
