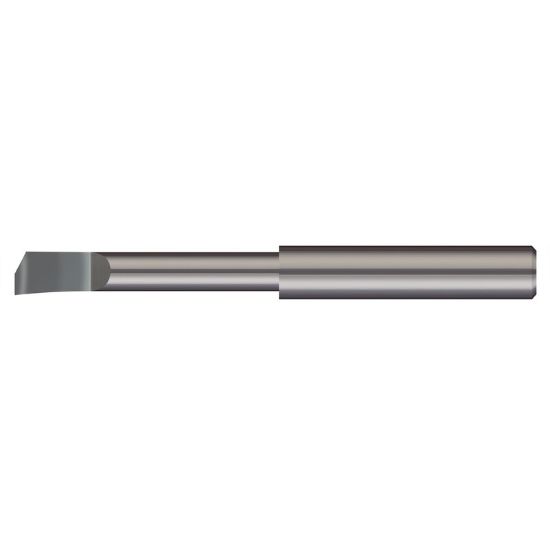

MICRO 100 HBB-030125 Solid Tool Back Boring Swiss 0.125 Shank 0.0275 Min Bore 1.500 OAL

ANSI: HBB-030125

ISO: HBB-030125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICHBB-030125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Made In USA Yes
Shipping State Massachusetts
Application Int.Solid Back Turning, Swiss
Dimensional Specifications
Neck Dia 0.0250
Overall Len 1.5000 38.10MM
Centerline Off Set 0.0150
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Neck Length 0.1250 3.18MM
Tool Material Carbide
Min Bore 0.0275
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
