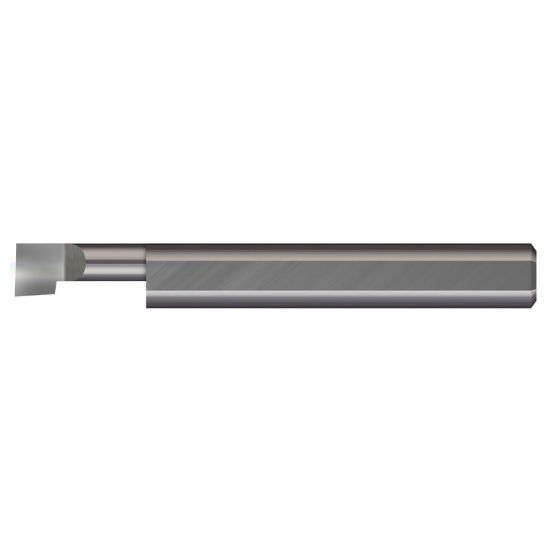

MICRO 100 BBM-100938 Solid Tool Boring Swiss 0.393 Shank 0.3543 Min Bore 2.834 OAL

ANSI: BBM-100938

ISO: BBM-100938

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICBBM-100938
Delivery date: 3-5 days
$57.31

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Int.Solid Turning, Swiss
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3937 10.00MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.0886
Min Bore 0.3543
Neck Length 1.4961 38.00MM
Overall Len 2.8346 72.00MM
Tool Material Carbide
Centerline Off Set 0.1575
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
