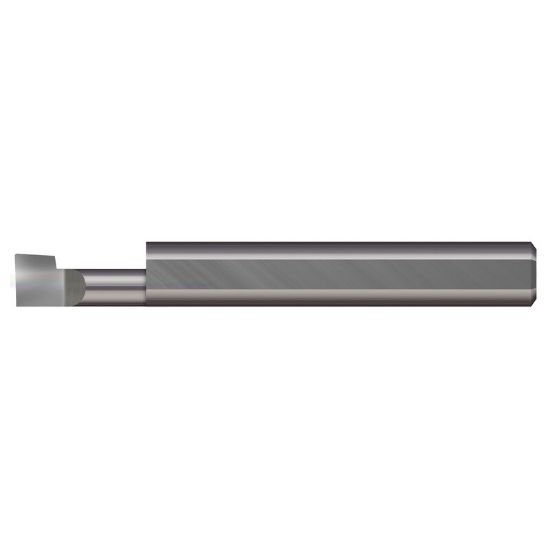

MICRO 100 BBL-2301000 Solid Tool Boring Swiss 0.312 Shank 0.23 Min Bore 2.500 OAL

ANSI: BBL-2301000

ISO: BBL-2301000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICBBL-2301000
Delivery date: 3-5 days
$41.38

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Solid Turning, Swiss
Insert Application Semi Finishing, Finishing
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Tool Material Carbide
Corner Radius 0.0060 0.15MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Min Bore 0.2300
Overall Len 2.5000 63.50MM
Centerline Off Set 0.0740
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Neck Length 1.0000 25.40MM
Tool Over Hang 0.0570
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
