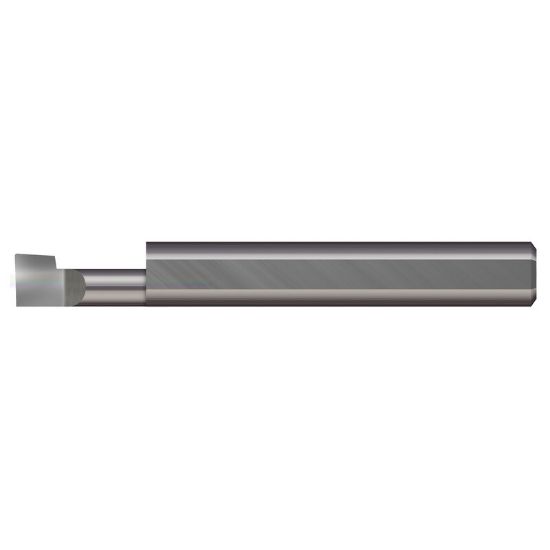

MICRO 100 BBL-100150 Solid Tool Boring Swiss 0.125 Shank 0.1 Min Bore 1.500 OAL

ANSI: BBL-100150

ISO: BBL-100150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICBBL-100150
Delivery date: 3-5 days
$26.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Insert Application Semi Finishing, Finishing
Application Swiss, Int.Solid Turning
Insert/Tool Tool
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Neck Length 0.1500 3.81MM
Tool Over Hang 0.0250
Centerline Off Set 0.0380
Tool Material Carbide
Overall Len 1.5000 38.10MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.1250 3.18MM
Min Bore 0.1000
Corner Radius 0.0030 0.08MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
