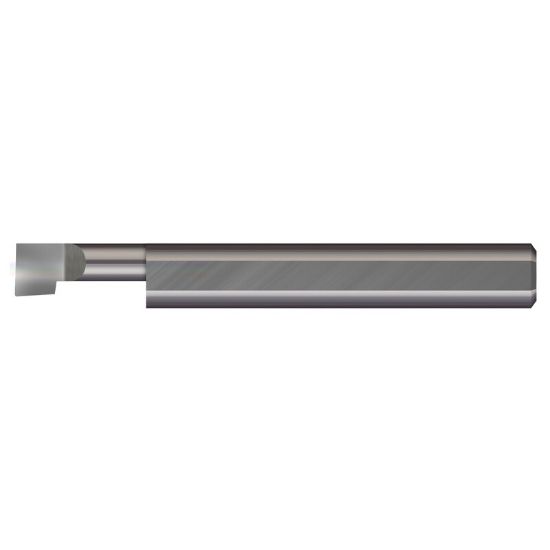

MICRO 100 BB-4901000 Solid Tool Boring Swiss 0.500 Shank 0.49 Min Bore 3.000 OAL

ANSI: BB-4901000

ISO: BB-4901000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICBB-4901000
Delivery date: 3-5 days
$78.62

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Made In USA Yes
Shipping State Massachusetts
Insert/Tool Tool
Package Size 1
Application Int.Solid Turning, Swiss
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 0.1220
Neck Length 1.0000 25.40MM
Min Bore 0.4900
Tool Material Carbide
Centerline Off Set 0.2400
Corner Radius 0.0060 0.15MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
