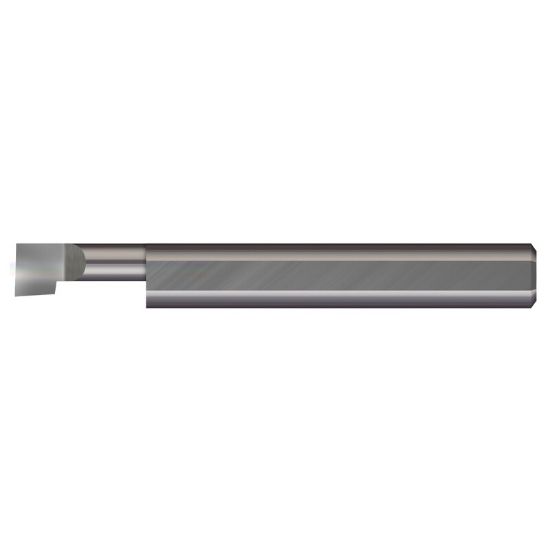

MICRO 100 BB-360600S Solid Tool Boring Swiss 0.375 Shank 0.36 Min Bore 2.500 OAL

ANSI: BB-360600S

ISO: BB-360600S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICBB-360600S
Delivery date: 3-5 days
$54.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Application Swiss, Int.Solid Turning
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Neck Length 0.6000 15.24MM
Centerline Off Set 0.1730
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.5000 63.50MM
Min Bore 0.3600
Tool Over Hang 0.0900
Tool Material Carbide
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
