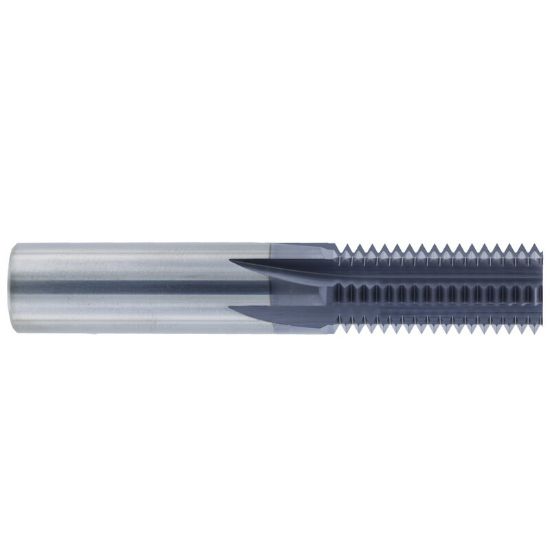

Picture of Melin TM-M24-2-H M24-2 Multi Fl Carbide60° Fl, UN Thread

Melin TM-M24-2-H M24-2 Multi Fl Carbide60° Fl, UN Thread

Part Number: MEL17604
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295352
Vendor: Sussex Tool and Supply
$439.24

Description

MELIN TOOL CO M24-2 Multi Fl Carb 60° Helical Fl, UN Thread Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7520 19.10MM
Length Of Cut 1.5748 40.00MM
Thread Pitch 2.00MM
Thread Size M24
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
