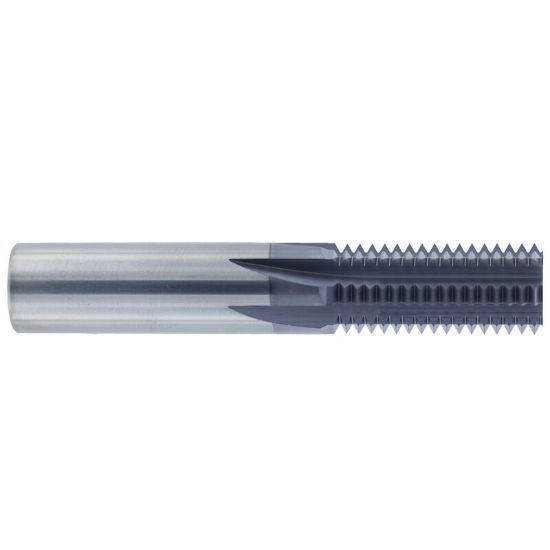

MELIN TM-1/4-20-H 1/4-20 Multi Fl Carbide 60° Fl, UN Thread

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL17541
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Coating AlTiN
Shipping State Ohio/California
Performance Rating High Performance
Application Thread Milling
Dimensional Specifications
Length Of Cut 0.5000 12.70MM
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1800 4.57MM - #15
Flutes/Inserts 3
Thread Size 1/4"
Machine Side Connection Type Cylindrical
Overall Len 2.5000 63.50MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 20.00TPI
Tool Material High Speed Steel
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
