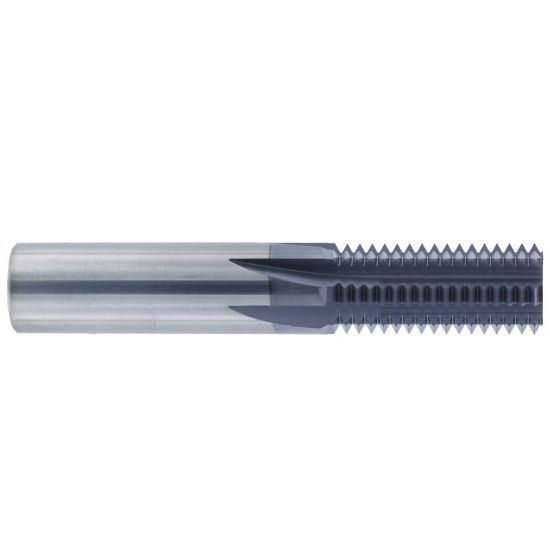

Picture of Melin TM-10-32-S 10-32 Multi Fl Carbide60° UN Thread

Melin TM-10-32-S 10-32 Multi Fl Carbide60° UN Thread

Part Number: MEL17504
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295276
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

MELIN TOOL CO 10-32 Multi Fl Carb 60° Straight Fl, UN Thread High Speed Steel Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1400 3.56MM
Length Of Cut 0.3125 7.94MM
Thread Pitch 32.00TPI
Thread Size No.10
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material High Speed Steel
Cutting Edge Mat Carbide
Coating ALTIN
