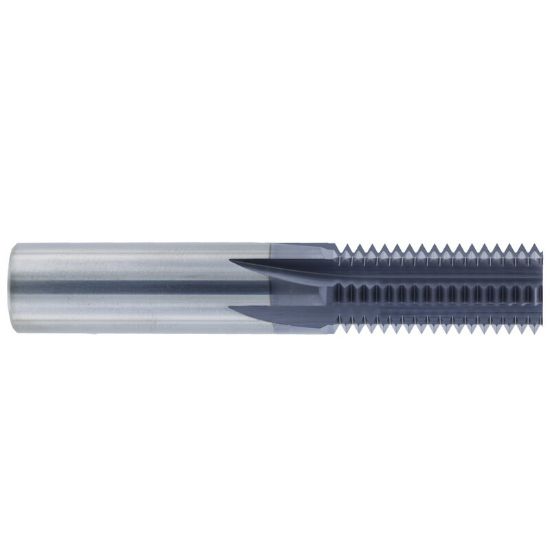

Picture of Melin TM-1-8-H 1-8 Multi Fl Carbide60° Fl, UN Thread

Melin TM-1-8-H 1-8 Multi Fl Carbide60° Fl, UN Thread

Part Number: MEL17568
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1295335
Vendor: Sussex Tool and Supply
$439.24

Description

MELIN TOOL CO 1-8 Multi Fl Carb 60° Helical Fl, UN Thread Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio/California
Made In USA YES
Cutter Type Mill Thread
Coolant Thru Non Coolant
Type Of Tool Thread Mill
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7350 18.67MM
Length Of Cut 1.3750 34.93MM
Thread Pitch 8.00TPI
Thread Size 1"
Performance & Capacity
Cut Rating Stainless, <40HRC, Iron, High Temp
Performance Rating High Performance
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
