  • MELIN H7232 DIA 8MM SH 0.3150 LOC 0.1575 OAL 2.9528 End Mill Carbide nACRoA Single End High Feed0.0787 2.00MM

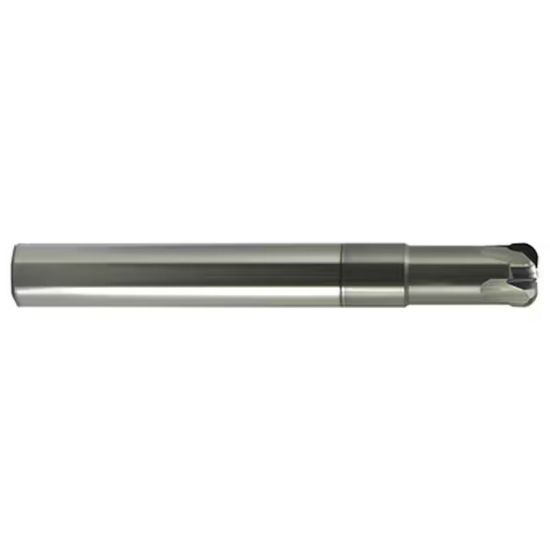

Picture of MELIN H7232 DIA 8MM SH 0.3150 LOC 0.1575 OAL 2.9528 End Mill Carbide nACRoA Single End High Feed0.0787 2.00MM

MELIN H7232 DIA 8MM SH 0.3150 LOC 0.1575 OAL 2.9528 End Mill Carbide nACRoA Single End High Feed0.0787 2.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MELH7232
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating General Performance
Application Face Milling, Copy Milling, Feed Milling, Profile Milling, Slot Milling
Package Size 1
Coating nACRoA
Shipping State Ohio/California
Dimensional Specifications
Helix Angle 30°
Corner Radius 0.0787 2.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape High Feed
Neck Length 1.1811 30.00MM
Overall Len 2.9528 75.00MM
Single/Double End Single End
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Length Of Cut 0.1575 4.00MM
Cutter Style Carbide Feed Mill
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Length Type Standard / With Neck
Dimension Description 0.315 x 0.315 x 0.158 x 2.953
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Job Shop Yes
Medical Yes
