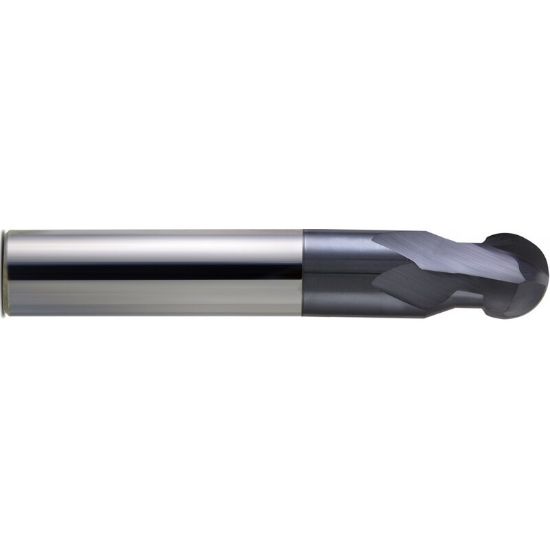

MELIN H7091 DIA 1/2 SH 0.50 LOC 0.4660 OAL 3.00 End Mill Standard Flute Standard Helix Carbide nACRoA Single End SphericalBall 300°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MELH7091
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Under Cut Milling, Copy Milling, Ball Milling
Shipping State Ohio/California
Coating nACRoA
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Spherical
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Neck Length 0.7780 19.76MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 0.466 x 3.000
Length Of Cut 0.4660 11.84MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius Ball 300°
Overall Len 3.0000 76.20MM
Helix Angle 30°
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
