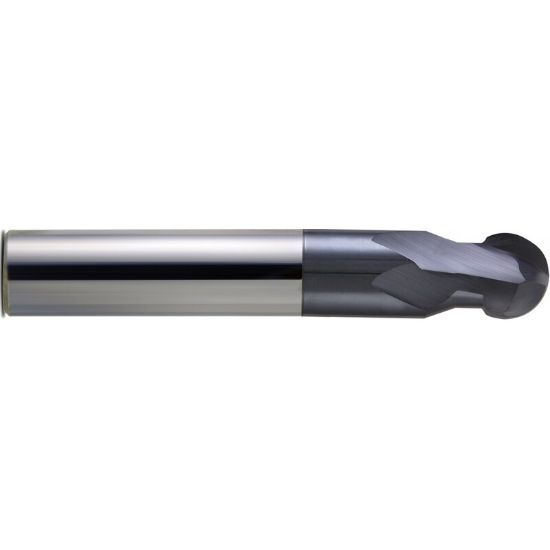

MELIN H7083 DIA 1/8 SH 0.1250 LOC 0.1160 OAL 1.50 End Mill Standard Flute Standard Helix Carbide nACRoA Single End SphericalBall 300°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MELH7083
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Under Cut Milling, Copy Milling, Profile Milling, Ball Milling
Coating nACRoA
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 1.5000 38.10MM
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Neck Length 0.3970 10.08MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.1160 2.95MM
End Of Tool Shape Spherical
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Flutes/Inserts 4
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.125 x 0.125 x 0.116 x 1.500
Single/Double End Single End
Corner Radius Ball 300°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Mold Yes
