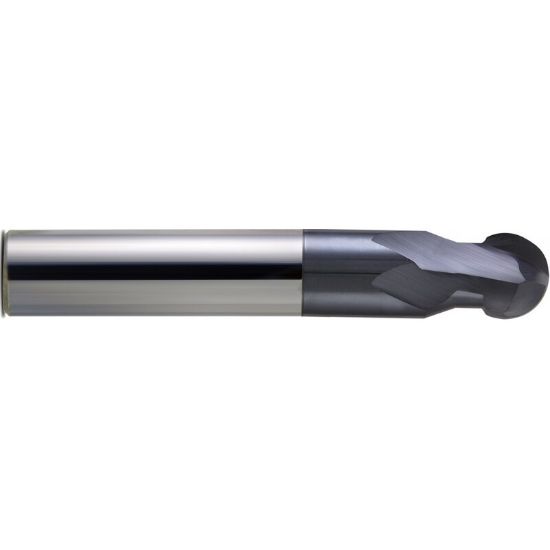

MELIN H7060 DIA 3/64 SH 0.1250 LOC 0.0400 OAL 1.50 End Mill Standard Flute Standard Helix Carbide nACRoA Single End SphericalBall 270°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MELH7060
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Copy Milling, Ball Milling, Under Cut Milling
Shipping State Ohio/California
Coating nACRoA
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.047 x 0.125 x 0.040 x 1.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.0469 1.19MM - 3/64
Flutes/Inserts 2
Length Of Cut 0.0400 1.02MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
End Of Tool Shape Spherical
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Helix Angle 30°
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Neck Length 0.1330 3.38MM
Overall Len 1.5000 38.10MM
Corner Radius Ball 270°
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
