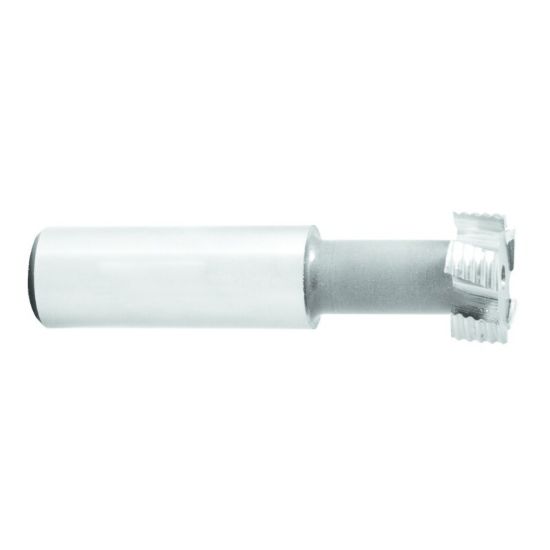

MELIN 42767 DIA 2.646 SH 1.2500 LOC 1.3390 OAL 5.9060T-Slot Cobalt TiCN Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL42767
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Groove Milling, Slot Milling, T-Slotting
Shipping State Ohio/California
Coating TiCN
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Dimension Description 2.646 x 1.250 x 1.339 x 5.906
Machine Side Connection Type Weldon
Flutes/Inserts 8
Length Of Cut 1.3390 34.01MM
Inch/Metric Inch
Cutter Dia 2.6460 67.21MM
Tool Material Cobalt
Overall Len 5.9060 150.01MM
End Of Tool Shape Corner Chamfer
Single/Double End Single End
Length Type Standard
Machine Side Connection Size 1.2500 31.75MM
Cutter Style Cobalt T-Slot
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
