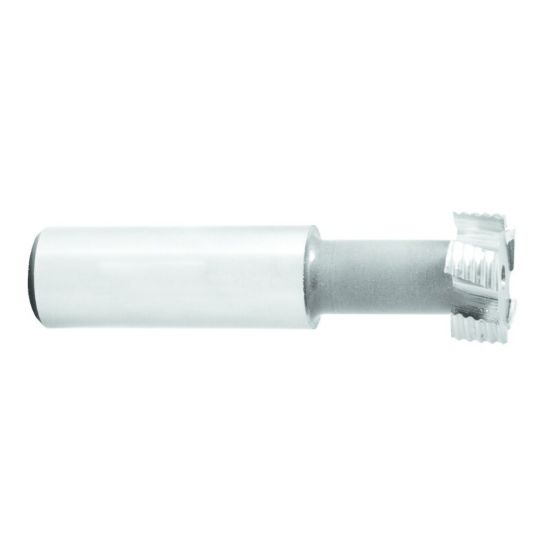

MELIN 42763 DIA 1.8338 SH 1.2500 LOC 0.8230 OAL 4.812T-Slot Cobalt TiCN Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL42763
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Coating TiCN
Package Size 1
Performance Rating General Performance
Application T-Slotting, Groove Milling, Slot Milling
Shipping State Ohio/California
Dimensional Specifications
Machine Side Connection Type Weldon
Flutes/Inserts 8
Tool Material Cobalt
Length Of Cut 0.8230 20.90MM
Single/Double End Single End
Cutter Dia 1.8338 46.58MM
Inch/Metric Inch
Dimension Description 1.834 x 1.250 x 0.823 x 4.813
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Style Cobalt T-Slot
End Of Tool Shape Corner Chamfer
Length Type Standard
Machine Side Connection Size 1.2500 31.75MM
Overall Len 4.8125 122.24MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
