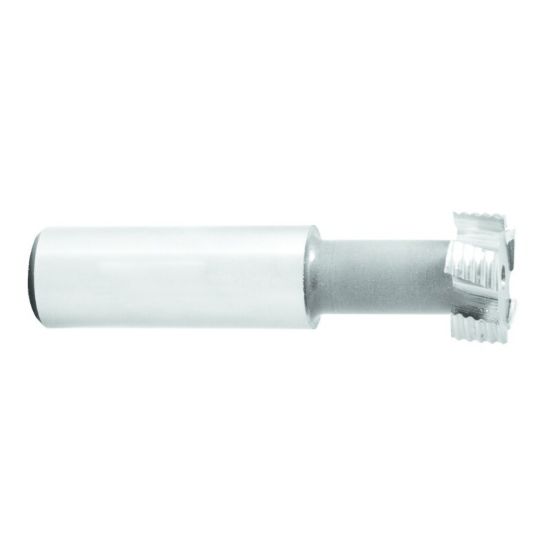

MELIN 42761 DIA 1.459 SH 1.00 LOC 0.6200 OAL 4.4375T-Slot Cobalt TiCN Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL42761
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Package Size 1
Made In USA Yes
Application T-Slotting, Groove Milling, Slot Milling
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Cutter Dia 1.4590 37.06MM
Tool Material Cobalt
Length Of Cut 0.6200 15.75MM
End Of Tool Shape Corner Chamfer
Single/Double End Single End
Length Type Standard
Overall Len 4.4375 112.71MM
Dimension Description 1.459 x 1.000 x 0.620 x 4.438
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Cobalt T-Slot
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
