  • MELIN 33344 DIA 2 SH 2.00 LOC 6.00 OAL 9.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

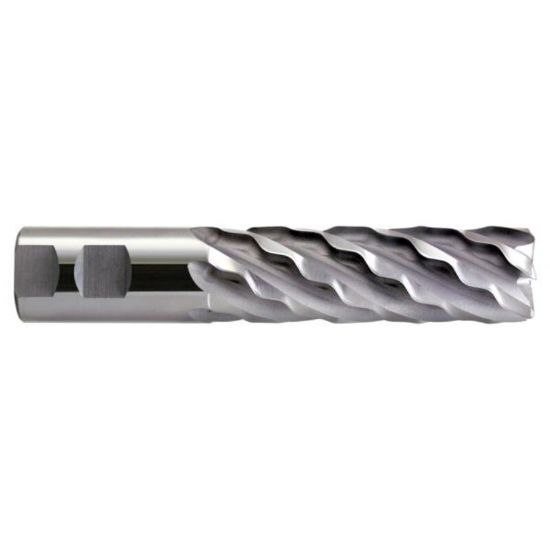

Picture of MELIN 33344 DIA 2 SH 2.00 LOC 6.00 OAL 9.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

MELIN 33344 DIA 2 SH 2.00 LOC 6.00 OAL 9.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL33344
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Face Milling
Made In USA Yes
Shipping State Ohio/California
Coating nACRoA
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 9.7500 247.65MM
Dimension Description 2.000 x 2.000 x 6.000 x 9.750
Machine Side Connection Type Weldon
Length Type Standard
Shank/Pilot Dia 2.0000 50.80MM - 2
Length Of Cut 6.0000 152.40MM
End Of Tool Shape Corner Chamfer
Machine Side Connection Size 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Inch/Metric Inch
Tool Material Cobalt
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
