  • MELIN 33343 DIA 2 SH 2.00 LOC 4.00 OAL 7.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

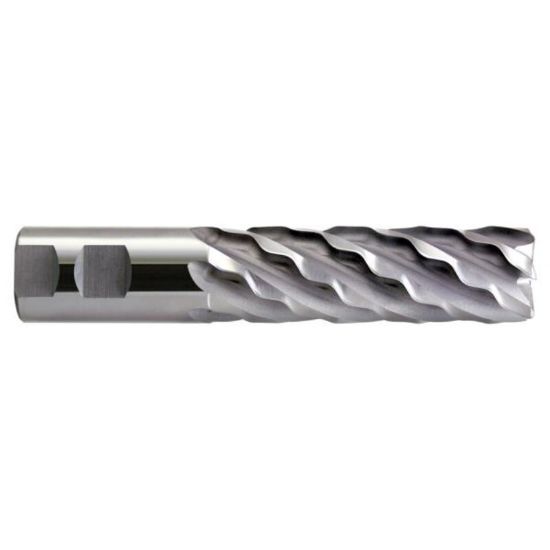

Picture of MELIN 33343 DIA 2 SH 2.00 LOC 4.00 OAL 7.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

MELIN 33343 DIA 2 SH 2.00 LOC 4.00 OAL 7.7500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL33343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Coating nACRoA
Shipping State Ohio/California
Dimensional Specifications
Length Of Cut 4.0000 101.60MM
Tool Material Cobalt
Shank/Pilot Dia 2.0000 50.80MM - 2
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Dimension Description 2.000 x 2.000 x 4.000 x 7.750
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 7.7500 196.85MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Length Type Standard
Machine Side Connection Size 2.0000 50.80MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
