  • MELIN 33125 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

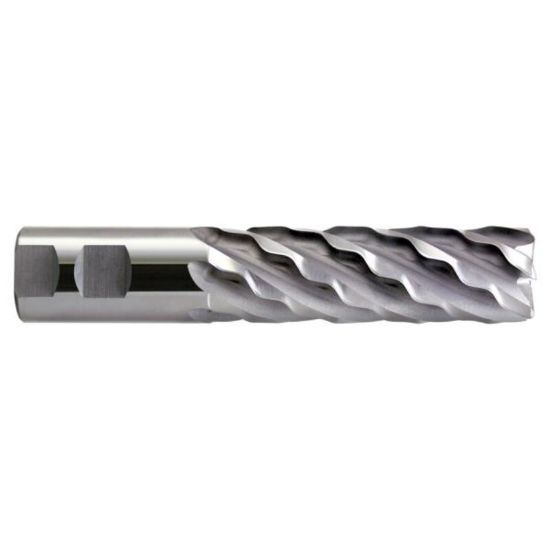

Picture of MELIN 33125 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

MELIN 33125 DIA 3/4 SH 0.7500 LOC 3.00 OAL 5.2500 End Mill Cobalt nACRoA Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL33125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Coating nACRoA
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Length Type Standard
Dimension Description 0.750 x 0.750 x 3.000 x 5.250
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Inch/Metric Inch
Overall Len 5.2500 133.35MM
Machine Side Connection Type Weldon
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Corner Chamfer
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
