  • MELIN 19247 DIA 1/2 SH 0.50 OAL 3.3750 Chamfer Mill Cobalt Uncoated Double End Cham Mill

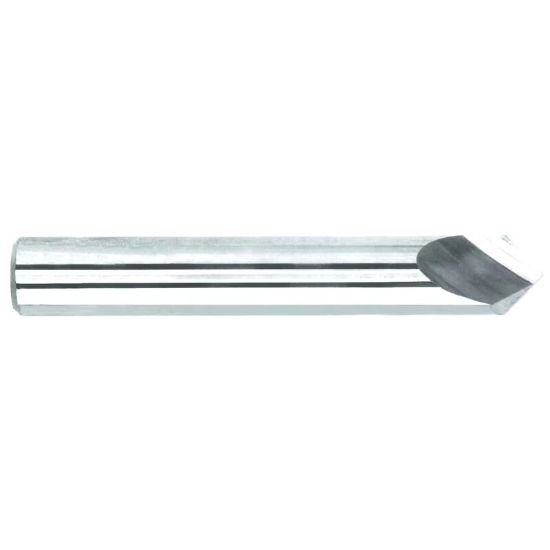

Picture of MELIN 19247 DIA 1/2 SH 0.50 OAL 3.3750 Chamfer Mill Cobalt Uncoated Double End Cham Mill

MELIN 19247 DIA 1/2 SH 0.50 OAL 3.3750 Chamfer Mill Cobalt Uncoated Double End Cham Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL19247
Delivery date: 3-5 days
$50.72

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Ohio/California
Application Chamfering
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.3750 85.73MM
Single/Double End Double End
Chamfer Angle 60.0°
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Flutes/Inserts 2
End Of Tool Shape Chamfer
Cutter Style Chamfer Mill
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
