  • MELIN 19243 DIA 3/4 SH 0.3750 OAL 2.3750 Chamfer Mill Cobalt Uncoated Single End Cham Mill

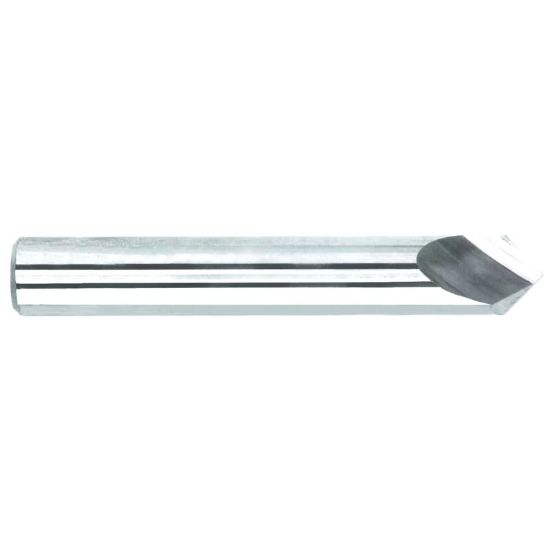

Picture of MELIN 19243 DIA 3/4 SH 0.3750 OAL 2.3750 Chamfer Mill Cobalt Uncoated Single End Cham Mill

MELIN 19243 DIA 3/4 SH 0.3750 OAL 2.3750 Chamfer Mill Cobalt Uncoated Single End Cham Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL19243
Delivery date: 3-5 days
$51.99

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Ohio/California
Application Chamfering
Package Size 1
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3750 60.33MM
Inch/Metric Inch
Cutter Style Chamfer Mill
Tool Material Cobalt
End Of Tool Shape Chamfer
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Chamfer Angle 90.0°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
