  • MELIN 16449 DIA 7/16 SH 0.3750 LOC 1.0313 OAL 2.7180Drill /Mill Cobalt Uncoated Single End Drill Point

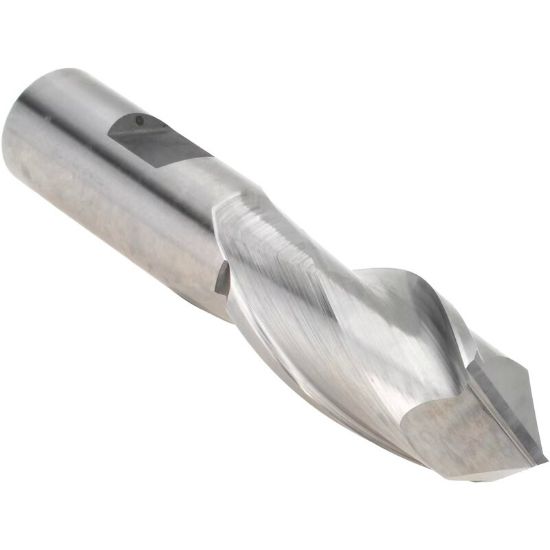

Picture of MELIN 16449 DIA 7/16 SH 0.3750 LOC 1.0313 OAL 2.7180Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16449 DIA 7/16 SH 0.3750 LOC 1.0313 OAL 2.7180Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16449
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Multi Funcion Tools, Drilling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material Cobalt
Single/Double End Single End
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Overall Len 2.7180 69.04MM
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.438 x 0.375 x 1.031 x 2.718
End Of Tool Shape Drill Point
Cutter Style Carbide Drill/Mill
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.0313 26.20MM
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
