  • MELIN 16447 DIA 9/16 SH 0.50 LOC 1.4062 OAL 3.4060Drill /Mill Cobalt Uncoated Single End Drill Point

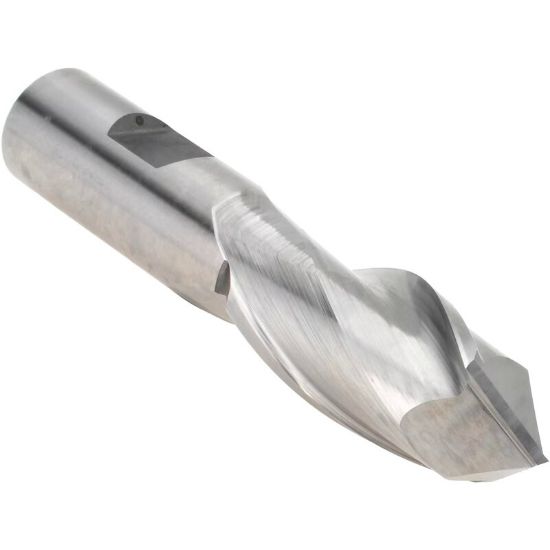

Picture of MELIN 16447 DIA 9/16 SH 0.50 LOC 1.4062 OAL 3.4060Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16447 DIA 9/16 SH 0.50 LOC 1.4062 OAL 3.4060Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16447
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Drilling, Side Milling, Multi Funcion Tools
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Dimension Description 0.563 x 0.500 x 1.406 x 3.406
Length Of Cut 1.4062 35.72MM
End Of Tool Shape Drill Point
Inch/Metric Inch
Cutter Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 2
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.4060 86.51MM
Helix Angle 30°
Cutter Style Carbide Drill/Mill
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
