  • MELIN 16442 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375Drill /Mill Cobalt Uncoated Single End Drill Point

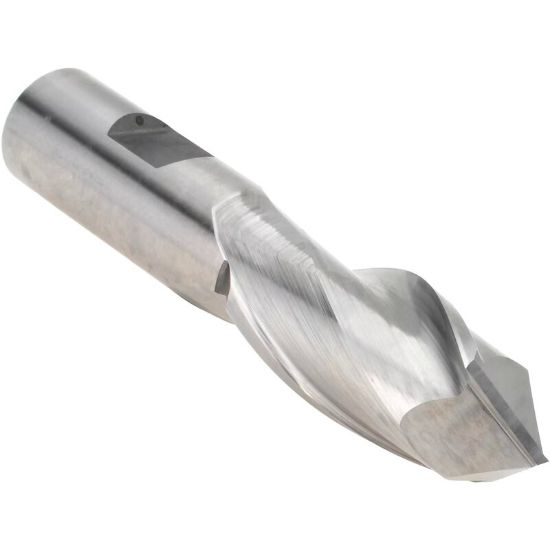

Picture of MELIN 16442 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16442 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16442
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Funcion Tools, Drilling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio/California
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Drill/Mill
Dimension Description 0.250 x 0.375 x 0.625 x 2.438
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Overall Len 2.4375 61.91MM
End Of Tool Shape Drill Point
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
