  • MELIN 16337 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125Drill /Mill Cobalt Uncoated Single End Drill Point

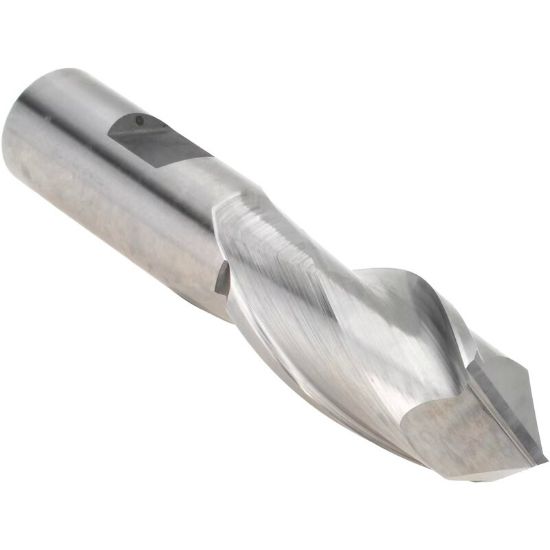

Picture of MELIN 16337 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16337 DIA 3/16 SH 0.3750 LOC 0.4375 OAL 2.3125Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16337
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Funcion Tools, Drilling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio/California
Performance Rating General Performance
Dimensional Specifications
Cutter Style Carbide Drill/Mill
Machine Side Connection Type Weldon
Inch/Metric Inch
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.188 x 0.375 x 0.438 x 2.313
End Of Tool Shape Drill Point
Single/Double End Single End
Helix Angle 30°
Tool Material Cobalt
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.3125 58.74MM
Length Of Cut 0.4375 11.11MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
