  • MELIN 16330 DIA 3/4 SH 0.7500 LOC 1.6875 OAL 3.9375Drill /Mill Cobalt Uncoated Single End Drill Point

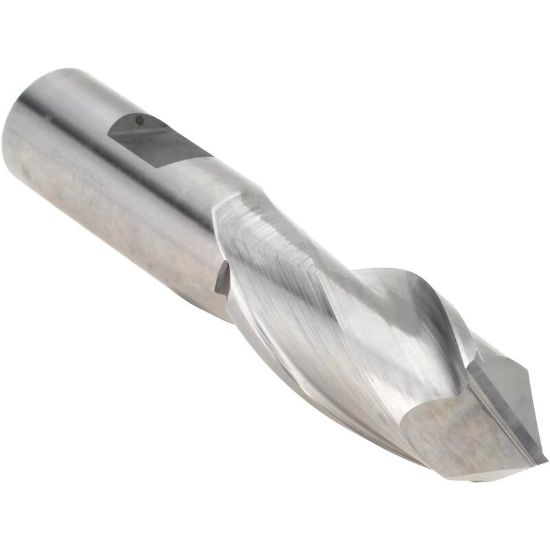

Picture of MELIN 16330 DIA 3/4 SH 0.7500 LOC 1.6875 OAL 3.9375Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16330 DIA 3/4 SH 0.7500 LOC 1.6875 OAL 3.9375Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16330
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Funcion Tools, Side Milling, Drilling
Package Size 1
Made In USA Yes
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.9375 100.01MM
Cutter Style Carbide Drill/Mill
Inch/Metric Inch
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Flutes/Inserts 2
Length Type Standard
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6875 42.86MM
Single/Double End Single End
Machine Side Connection Type Weldon
Helix Angle 30°
Dimension Description 0.750 x 0.750 x 1.688 x 3.938
End Of Tool Shape Drill Point
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
