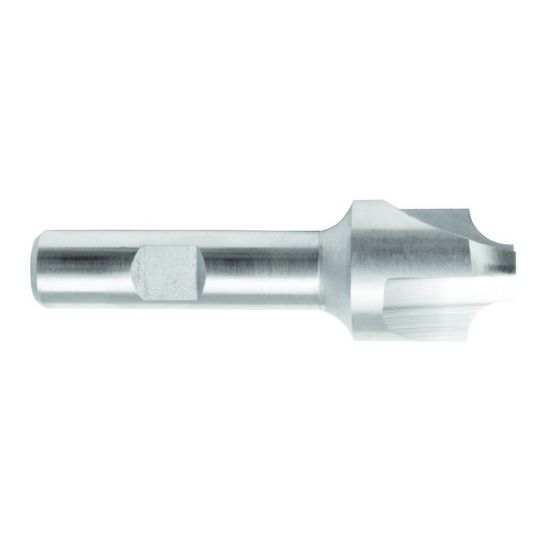

MELIN 16311 DIA 3/8 SH 0.3750 LOC 0.1400 OAL 2.50 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.1400 3.56MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16311
Delivery date: 3-5 days
$60.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Ohio/California
Package Size 1
Application Corner RoundIng
Performance Rating General Performance
Dimensional Specifications
Corner Radius 0.1400 3.56MM
Cutter Style Carbide Corner Rounder
Single/Double End Double End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.1400 3.56MM
Overall Len 2.5000 63.50MM
Flutes/Inserts 2
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Dimension Description 0.375 x 0.375 x 0.140 x 2.500
Machine Side Connection Size 0.3750 9.53MM
End Of Tool Shape Corner Rounder
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
