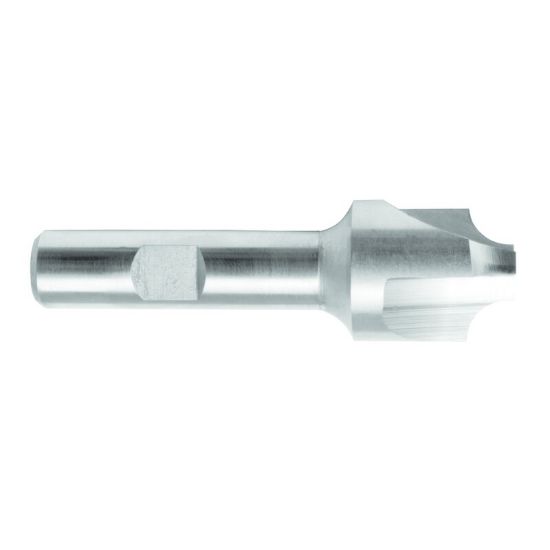

MELIN 16309 DIA 5/16 SH 0.3125 LOC 0.1180 OAL 2.50 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.1180 3.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16309
Delivery date: 3-5 days
$46.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Corner RoundIng
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
End Of Tool Shape Corner Rounder
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.1181 3.00MM
Dimension Description 0.313 x 0.313 x 0.118 x 2.500
Corner Radius 0.1180 3.00MM
Overall Len 2.5000 63.50MM
Flutes/Inserts 2
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Single/Double End Double End
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
