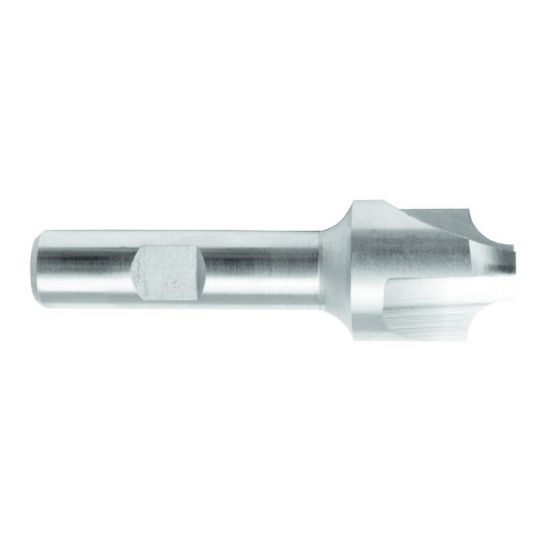

MELIN 16308 DIA 5/16 SH 0.3125 LOC 0.1090 OAL 2.50 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.1090 2.77MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16308
Delivery date: 3-5 days
$46.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Corner RoundIng
Made In USA Yes
Shipping State Ohio/California
Package Size 1
Dimensional Specifications
Dimension Description 0.313 x 0.313 x 0.109 x 2.500
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Single/Double End Double End
Corner Radius 0.1090 2.77MM
Overall Len 2.5000 63.50MM
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 2
End Of Tool Shape Corner Rounder
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.1090 2.77MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
