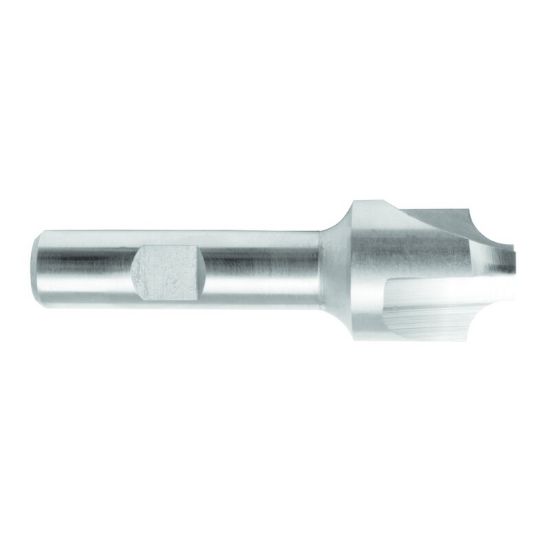

MELIN 16303 DIA 3/16 SH 0.1875 LOC 0.0620 OAL 2.00 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.0620 1.57MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16303
Delivery date: 3-5 days
$35.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Made In USA Yes
Application Corner RoundIng
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Single/Double End Double End
Corner Radius 0.0620 1.57MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
End Of Tool Shape Corner Rounder
Length Type Standard
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.0620 1.57MM
Dimension Description 0.188 x 0.188 x 0.062 x 2.000
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
