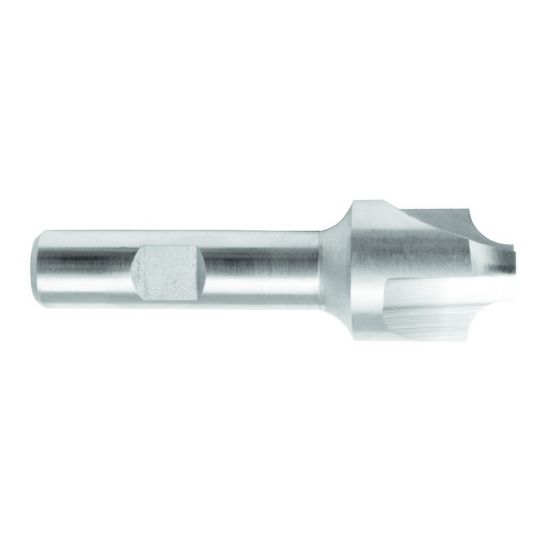

MELIN 16301 DIA 3/16 SH 0.1875 LOC 0.0500 OAL 2.00 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.0500 1.27MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16301
Delivery date: 3-5 days
$35.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Corner RoundIng
Shipping State Ohio/California
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Dimension Description 0.188 x 0.188 x 0.050 x 2.000
Corner Radius 0.0500 1.27MM
Overall Len 2.0000 50.80MM
End Of Tool Shape Corner Rounder
Machine Side Connection Size 0.1875 4.76MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.0500 1.27MM
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
