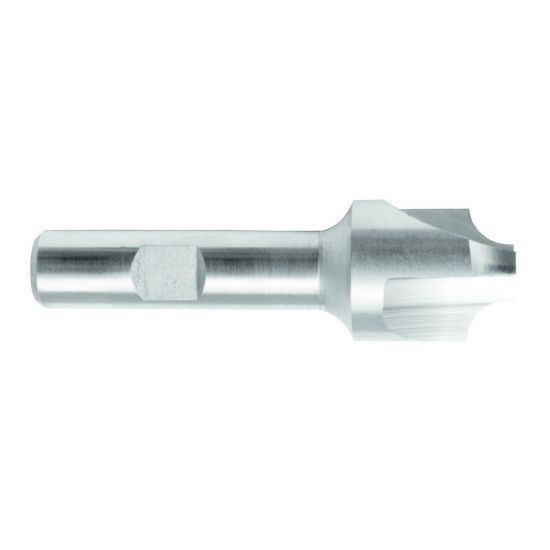

MELIN 16295 DIA 1/8 SH 0.1250 LOC 0.0200 OAL 1.50 Corner Rounder Carbide Uncoated Double End Corner Rounder 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16295
Delivery date: 3-5 days
$27.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Performance Rating General Performance
Made In USA Yes
Package Size 1
Application Corner RoundIng
Dimensional Specifications
Machine Side Connection Size 0.1250 3.18MM
End Of Tool Shape Corner Rounder
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 1.5000 38.10MM
Cutter Dia 0.1250 3.18MM - 1/8
Flutes/Inserts 2
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Single/Double End Double End
Dimension Description 0.125 x 0.125 x 0.020 x 1.500
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.0200 0.51MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
