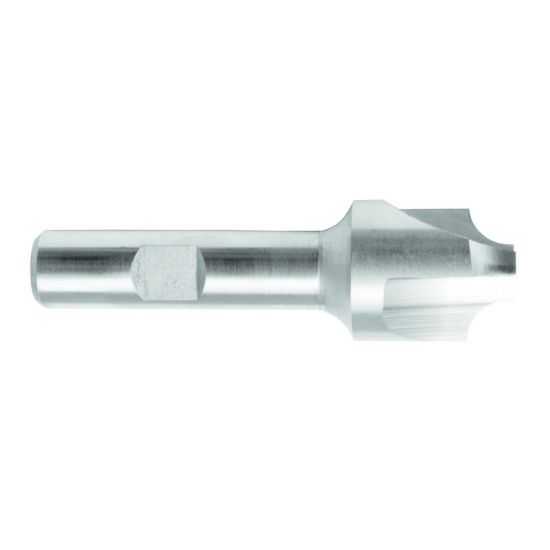

MELIN 16105 DIA 1 SH 1.00 LOC 0.2500 OAL 4.00 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.2500 6.35MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16105
Delivery date: 3-5 days
$243.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Corner RoundIng
Package Size 1
Made In USA Yes
Shipping State Ohio/California
Performance Rating General Performance
Dimensional Specifications
Corner Radius 0.2500 6.35MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Flutes/Inserts 4
Cutter Dia 1.0000 25.40MM
End Of Tool Shape Corner Rounder
Length Type Standard
Single/Double End Single End
Overall Len 4.0000 101.60MM
Dimension Description 1.000 x 1.000 x 0.250 x 4.000
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.2500 6.35MM
Helix Angle
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
