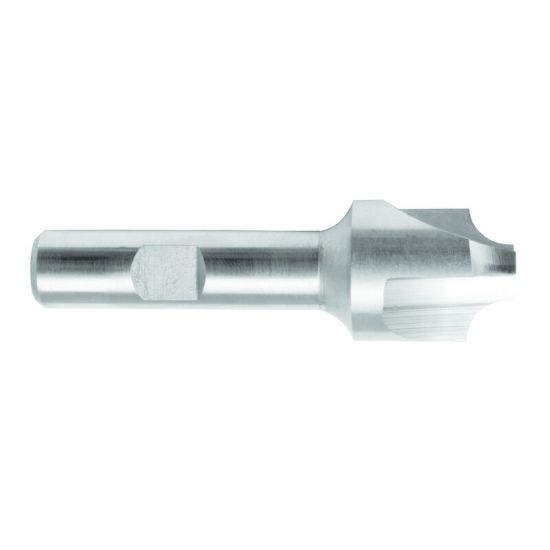

MELIN 16104 DIA 3/4 SH 0.7500 LOC 0.1875 OAL 4.00 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.1875 4.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16104
Delivery date: 3-5 days
$150.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Made In USA Yes
Package Size 1
Application Corner RoundIng
Performance Rating General Performance
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 0.188 x 4.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Helix Angle
Corner Radius 0.1875 4.76MM
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 0.1875 4.76MM
Single/Double End Single End
End Of Tool Shape Corner Rounder
Flutes/Inserts 4
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
