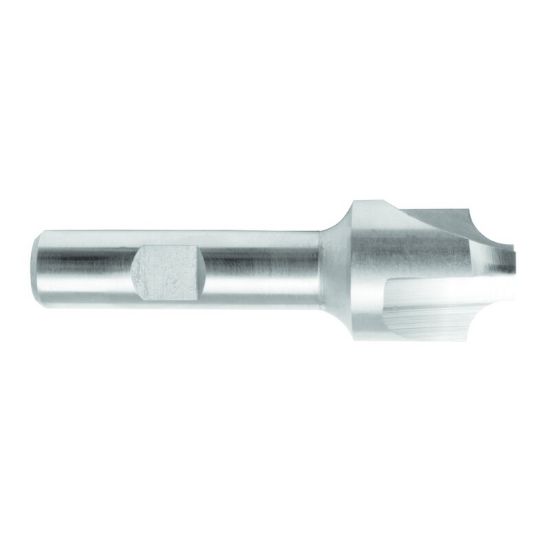

MELIN 16101 DIA 3/8 SH 0.3750 LOC 0.2756 OAL 2.50 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0938 2.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16101
Delivery date: 3-5 days
$46.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Corner RoundIng
Package Size 1
Shipping State Ohio/California
Performance Rating General Performance
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Helix Angle
Corner Radius 0.0938 2.38MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Corner Rounder
Length Type Standard
Dimension Description 0.375 x 0.375 x 0.276 x 2.500
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 4
Overall Len 2.5000 63.50MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
