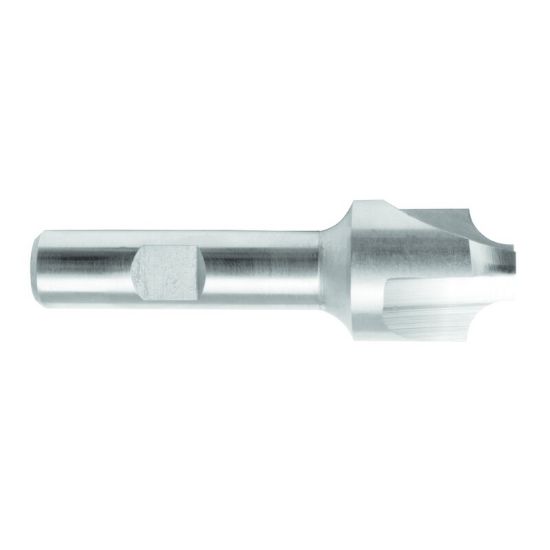

MELIN 16100 DIA 1/4 SH 0.2500 LOC 0.0625 OAL 2.50 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0625 1.59MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16100
Delivery date: 3-5 days
$28.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Application Corner RoundIng
Dimensional Specifications
Length Of Cut 0.0625 1.59MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 2.5000 63.50MM
Single/Double End Single End
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Length Type Standard
Dimension Description 0.250 x 0.250 x 0.063 x 2.500
Cutter Dia 0.2500 6.35MM - 1/4 - E
Helix Angle
Corner Radius 0.0625 1.59MM
End Of Tool Shape Corner Rounder
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
