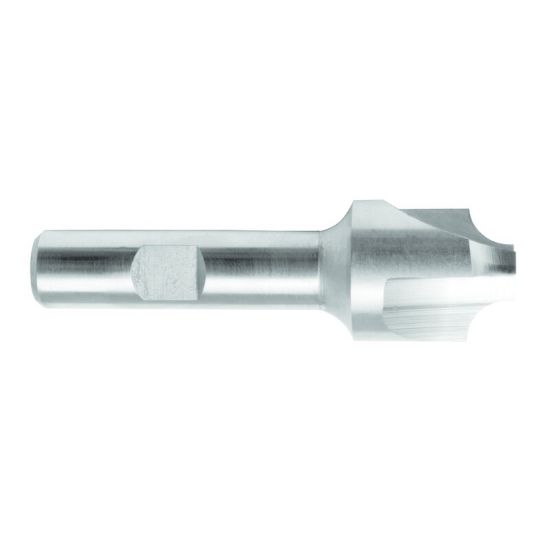

MELIN 16096 DIA 5/8 SH 0.6250 LOC 0.2756 OAL 3.50 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.1563 3.97MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16096
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Package Size 1
Application Corner RoundIng
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Corner Rounder
Inch/Metric Inch
Corner Radius 0.1563 3.97MM
Length Type Standard
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Corner Rounder
Dimension Description 0.625 x 0.625 x 0.276 x 3.500
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Helix Angle
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
