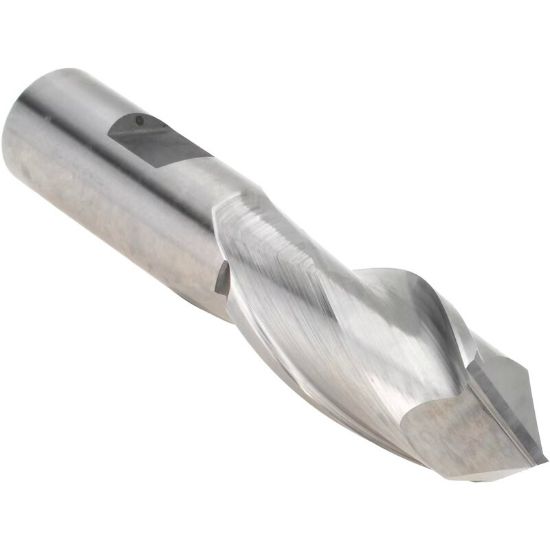

MELIN 16091 DIA 3/4 SH 0.7500 LOC 1.50 OAL 4.00Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16091
Delivery date: 3-5 days
$179.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Side Milling, Multi Funcion Tools
Package Size 1
Performance Rating General Performance
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Drill Point
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 1.500 x 4.000
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Flutes/Inserts 2
Length Type Standard
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutter Style Carbide Drill/Mill
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
