  • MELIN 16038 DIA 5/16 SH 0.3750 LOC 0.7187 OAL 2.4680Drill /Mill Cobalt Uncoated Single End Drill Point

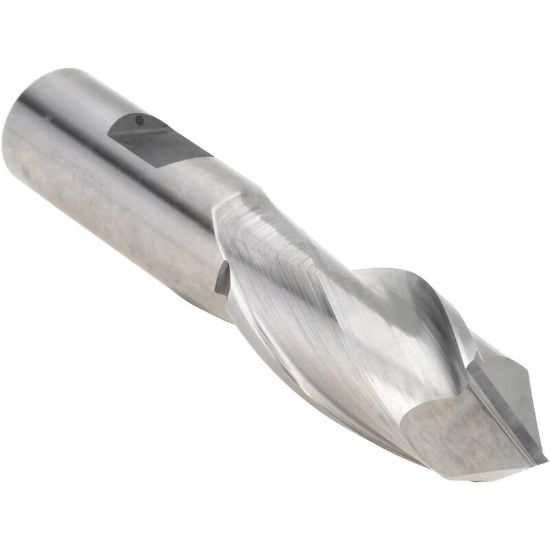

Picture of MELIN 16038 DIA 5/16 SH 0.3750 LOC 0.7187 OAL 2.4680Drill /Mill Cobalt Uncoated Single End Drill Point

MELIN 16038 DIA 5/16 SH 0.3750 LOC 0.7187 OAL 2.4680Drill /Mill Cobalt Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL16038
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Funcion Tools, Side Milling, Drilling
Shipping State Ohio/California
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Flutes/Inserts 2
End Of Tool Shape Drill Point
Overall Len 2.4680 62.69MM
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.3125 7.94MM - 5/16
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.7187 18.25MM
Cutter Style Carbide Drill/Mill
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Dimension Description 0.313 x 0.375 x 0.719 x 2.468
Inch/Metric Inch
Tool Material Cobalt
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
