  • MELIN 14434 DIA 1-1/4 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

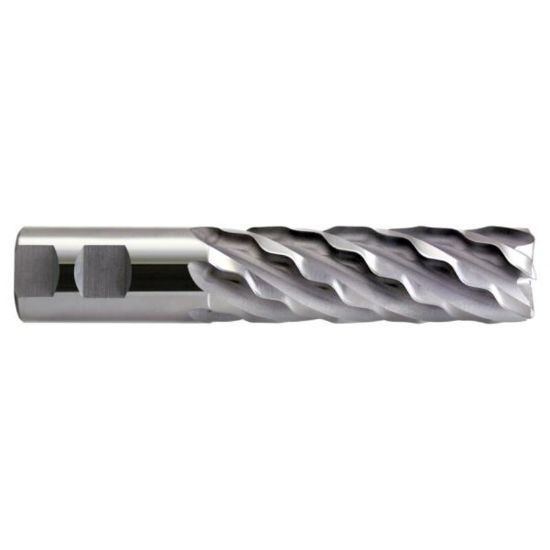

Picture of MELIN 14434 DIA 1-1/4 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 14434 DIA 1-1/4 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL14434
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Side Milling
Shipping State Ohio/California
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Dimension Description 1.250 x 1.250 x 6.000 x 8.500
Machine Side Connection Type Weldon
Flutes/Inserts 6
Tool Material Cobalt
Single/Double End Single End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Length Of Cut 6.0000 152.40MM
Length Type Standard
Overall Len 8.5000 215.90MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
