  • MELIN 14363 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

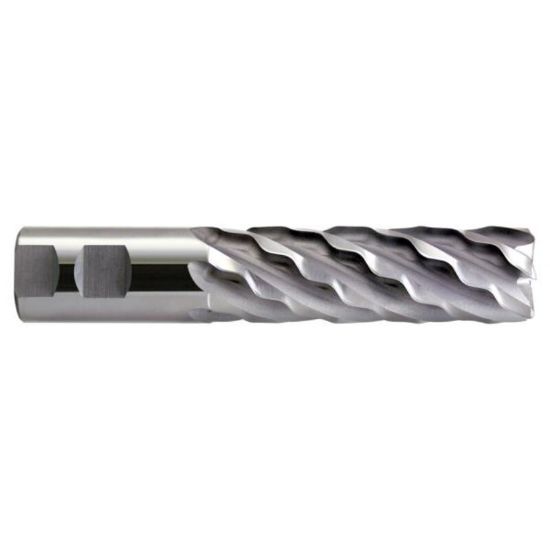

Picture of MELIN 14363 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 14363 DIA 1 SH 1.00 LOC 4.00 OAL 6.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL14363
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Tool Material Cobalt
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Dimension Description 1.000 x 1.000 x 4.000 x 6.500
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Cutter Dia 1.0000 25.40MM
Length Type Standard
End Of Tool Shape Corner Chamfer
Overall Len 6.5000 165.10MM
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 6
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
