  • MELIN 14353 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

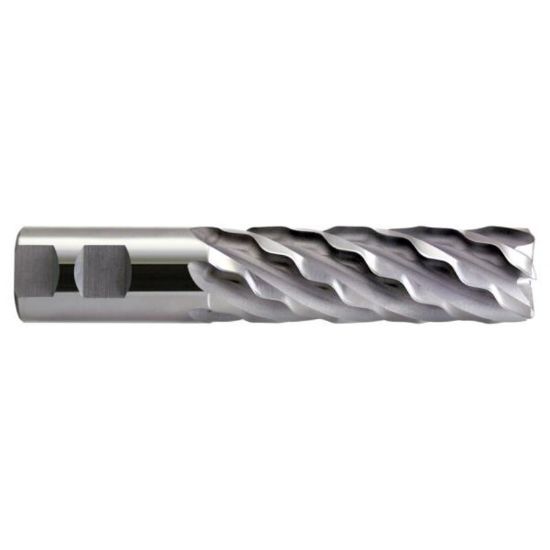

Picture of MELIN 14353 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 14353 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL14353
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 3.000 x 5.500
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 5.5000 139.70MM
Cutter Dia 1.0000 25.40MM
Length Of Cut 3.0000 76.20MM
Length Type Standard
Tool Material Cobalt
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
