  • MELIN 13718 DIA 2 SH 2.00 LOC 2.00 OAL 5.7500 End Mill Cobalt Uncoated Single End 45.0° Chamfer

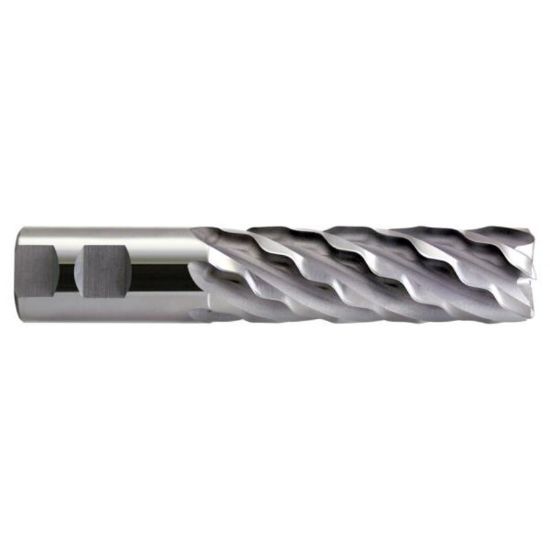

Picture of MELIN 13718 DIA 2 SH 2.00 LOC 2.00 OAL 5.7500 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 13718 DIA 2 SH 2.00 LOC 2.00 OAL 5.7500 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13718
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA Yes
Shipping State Ohio/California
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Length Type Standard
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Machine Side Connection Size 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Overall Len 5.7500 146.05MM
Flutes/Inserts 6
Inch/Metric Inch
Dimension Description 2.000 x 2.000 x 2.000 x 5.750
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
End Of Tool Shape Corner Chamfer
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
