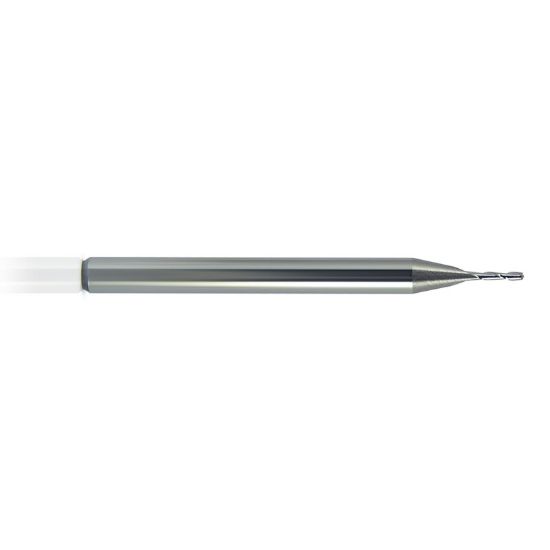

MELIN 13669 DIA 0.80MM SH 0.1181 LOC 0.0945 OAL 1.496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13669
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Machine Side Connection Size 0.1181 3.00MM
Single/Double End Single End
Flutes/Inserts 4
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutter Style Carbide Finisher
Cutter Dia 0.0315 0.80MM
Length Type Standard
Dimension Description 0.032 x 0.118 x 0.095 x 1.496
Overall Len 1.4961 38.00MM
Length Of Cut 0.0945 2.40MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
